Generic Full Complete Waterproof Metal Case Stand-alone Access Control Set & Wiegand 26 I/O & NO Mode Electric Strike Lock

Features:

Waterproof,conforms to IP68

Strong Zinc Alloy Electroplated anti-vandal case

Full programming from the keypad

2000 users,Supports Card, PIN, Card + PIN

Wiegand 26 input for connection to external reader

Wiegand 26 output for connection to a controller

Adjustable door output time,alarm time,door open time

Red,yellow and green LEDs display the working status

Access Control:
Operating Voltage: DC 12V
User Capacity: 2000
Card Reading Distance: 3~6 cm
Current: <30mA (Standby);<60mA (Active)
Lock Output Load: <3A
Alarm Output Load: <20A
Operation Temperature: -45C~60C
Operating Humidity: 10%~90% RH
Adjustable Door Relay time: 0~99 seconds
Wiegand Interface: Wiegand 26 bit
Wiring Connections: Electric Lock,Exit Button,External Alarm,External Reader
Compatible Cards: EM standard card (Can't support some encrypted cards,such as HID, Cobra, APCiK etc)
Dimension : Approx. 120(W)x58(H)x22(D) mm
Net Weight: Approx. 371g

Power Supply:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50~60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15 sec
Dimensions: 4.72Lx3.74Wx1.50H (inch)

Strike Lock:
Voltage: DC12V
Current: 450mA
Holding: 500kg
Mode: Fail secure - locked when power is removed
Signal Output: Not
Dimension: 1.34 x 1.55 x 5.9 inches

Keyfobs & Cards:
Operation Frequency: 125KHz
Reading distance: 3-10cm
Each keyfob has an uniqe ID number

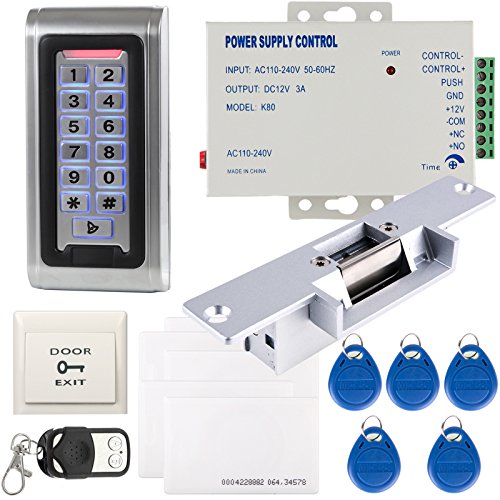

Package includes:
1 x Metal access control
1 x Electric Strike lock
1 x Power supply controller
1 x Exit button
1 x Remote
5 x ID cards (Thickness: 0.8mm)
5 x RFID keyfobs
1 x User Manual
